Ricoh GR3 control dial disassembling

Ricoh GR3 control dial / Vierwegeschalter

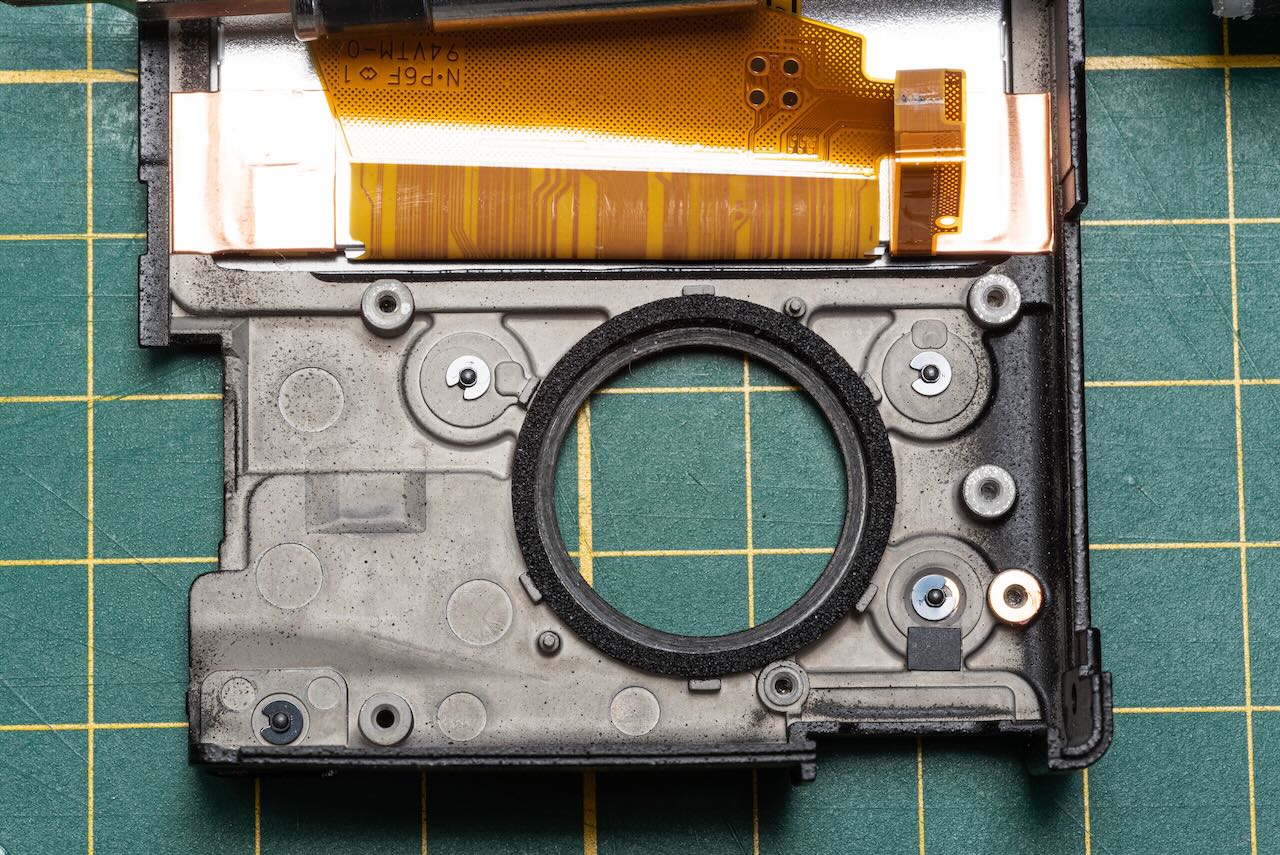

Backside of the GR3 casing. The control-dial is surrounded by foam witch keeps away dirt.

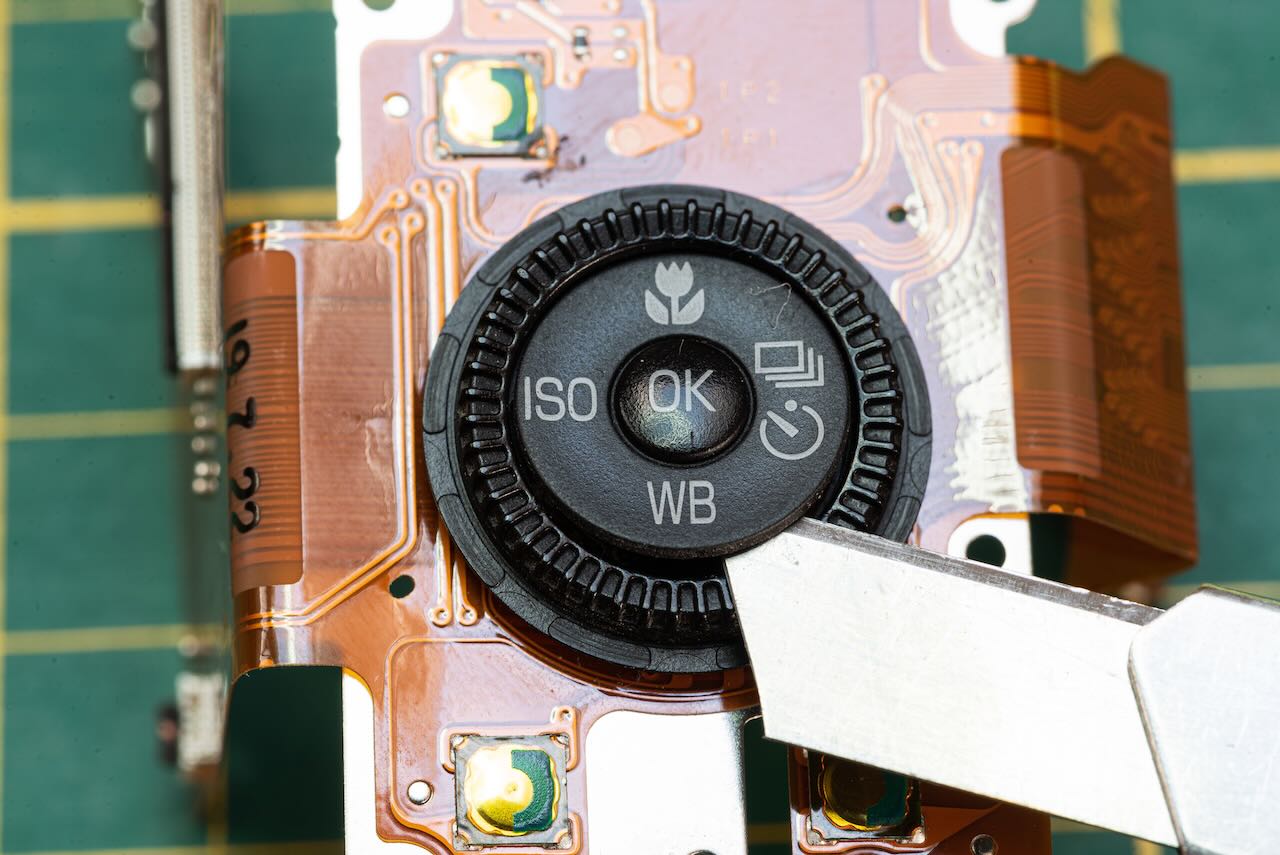

Disassembling the control-dial.

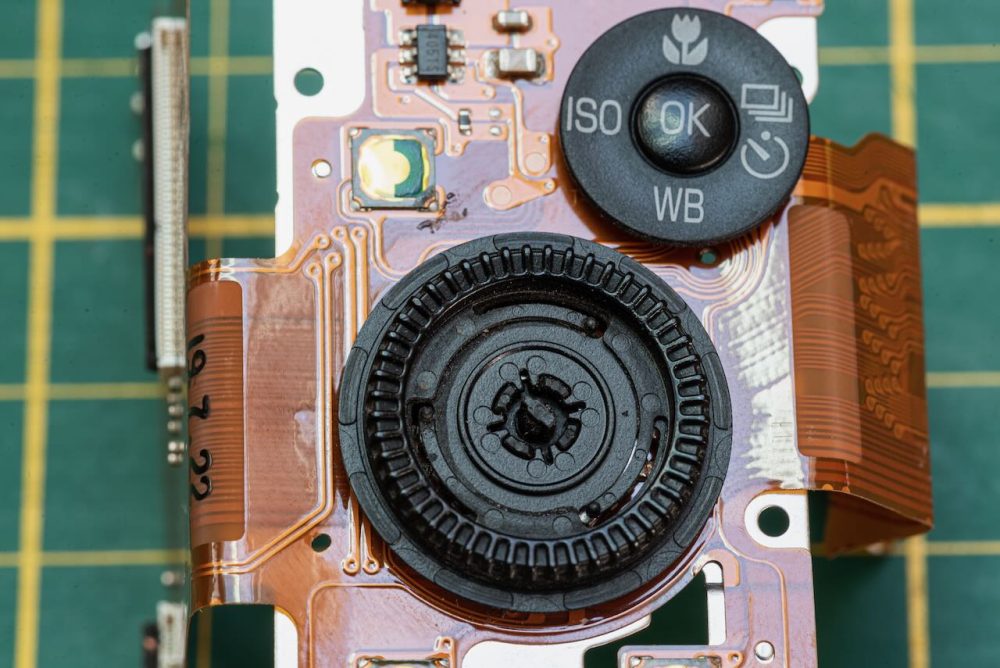

Removed the center button-plate.

Removed the four-way-button-plate.

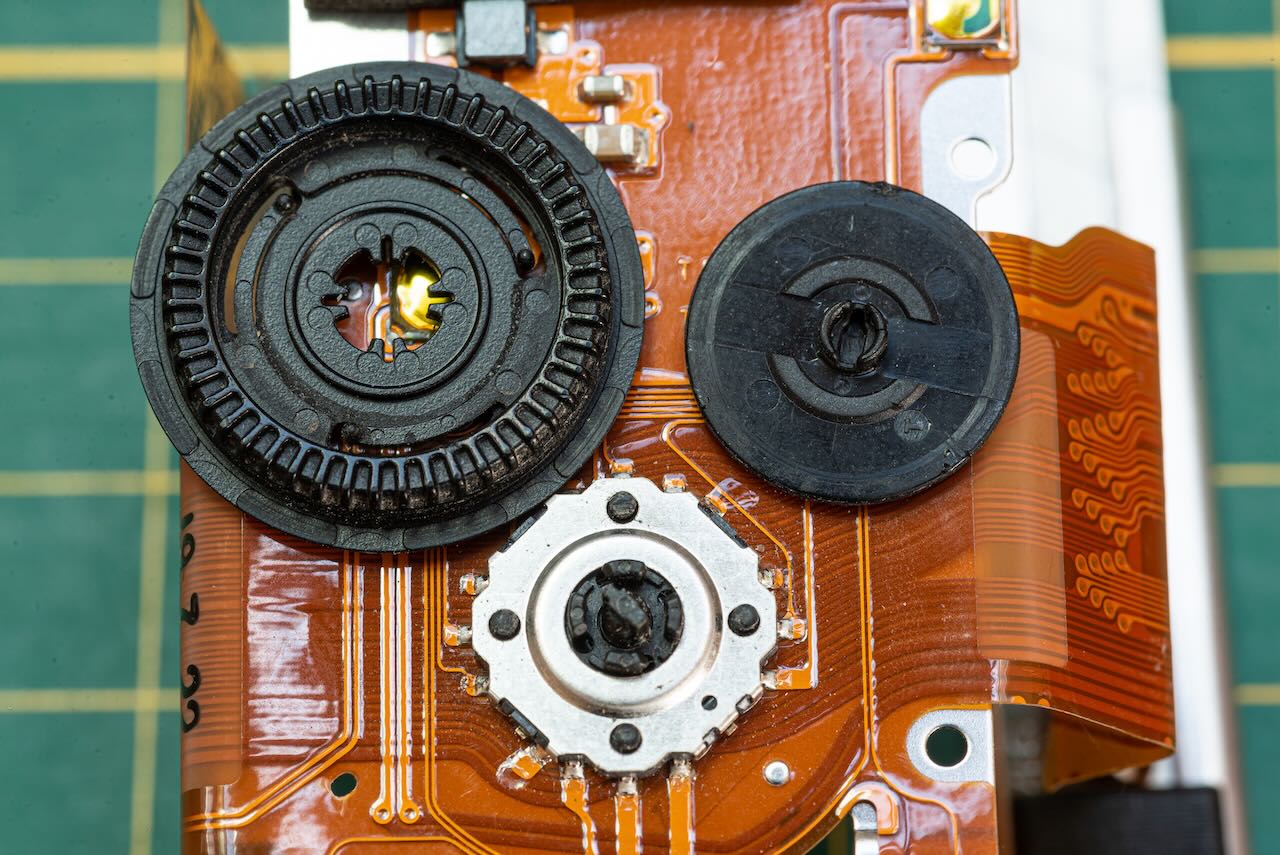

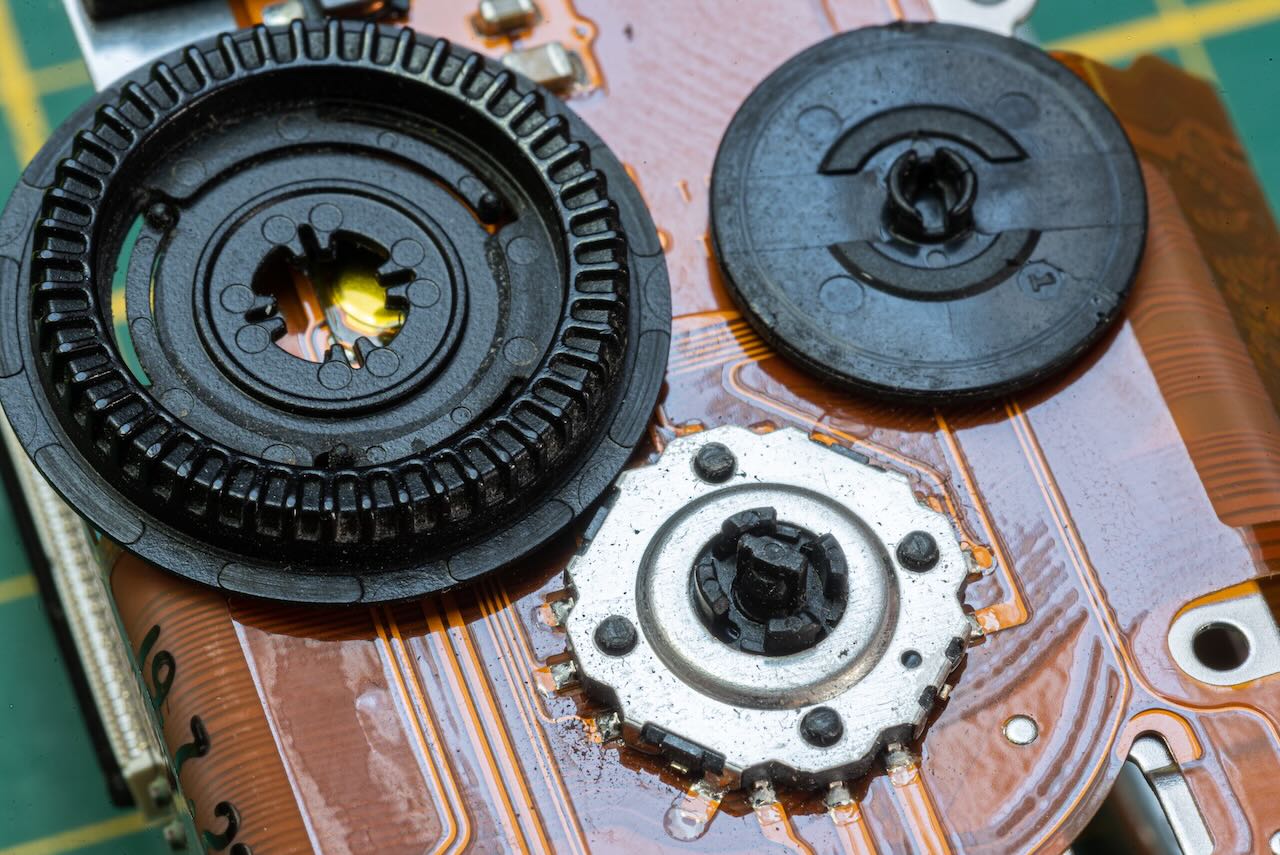

Center-button-plate and four-way-button-plate removed.

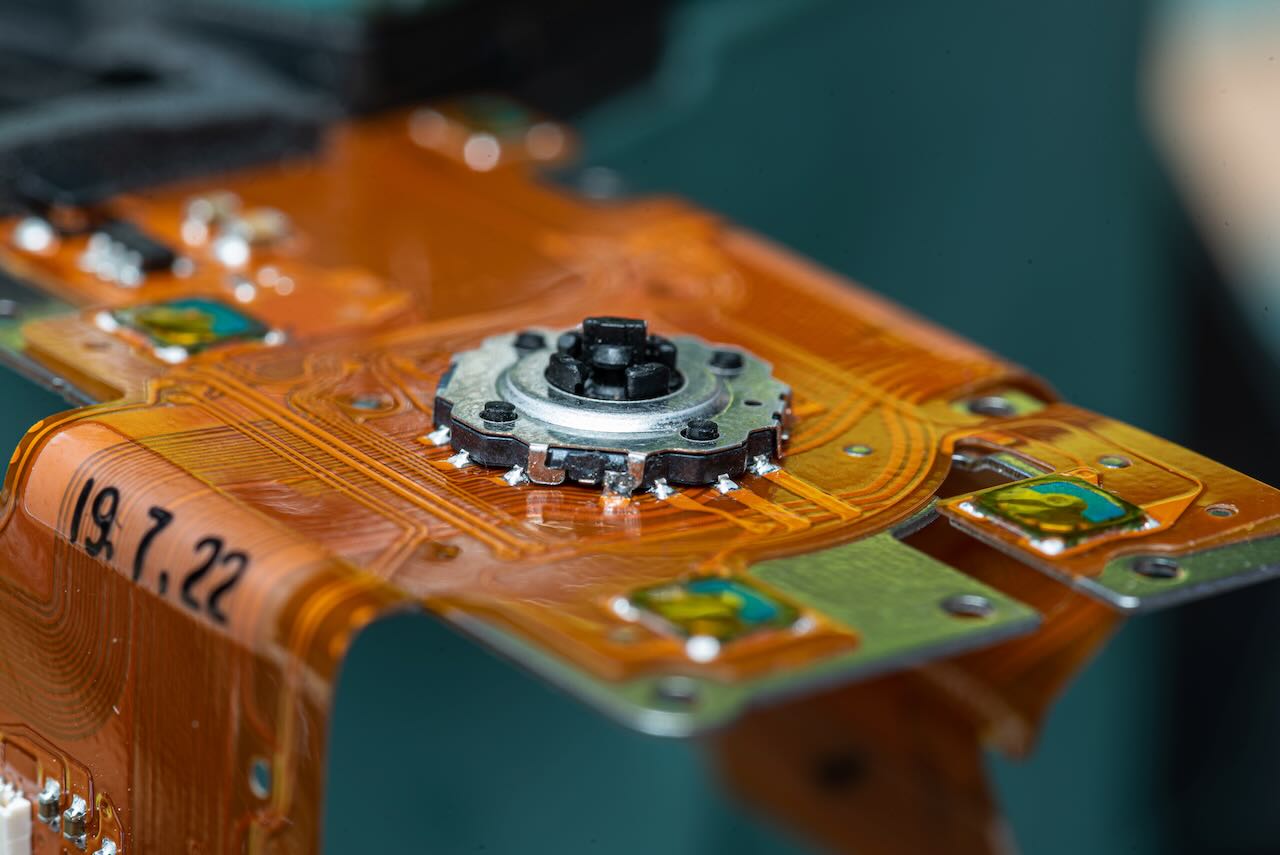

Metal casing is soldered on circuit board.

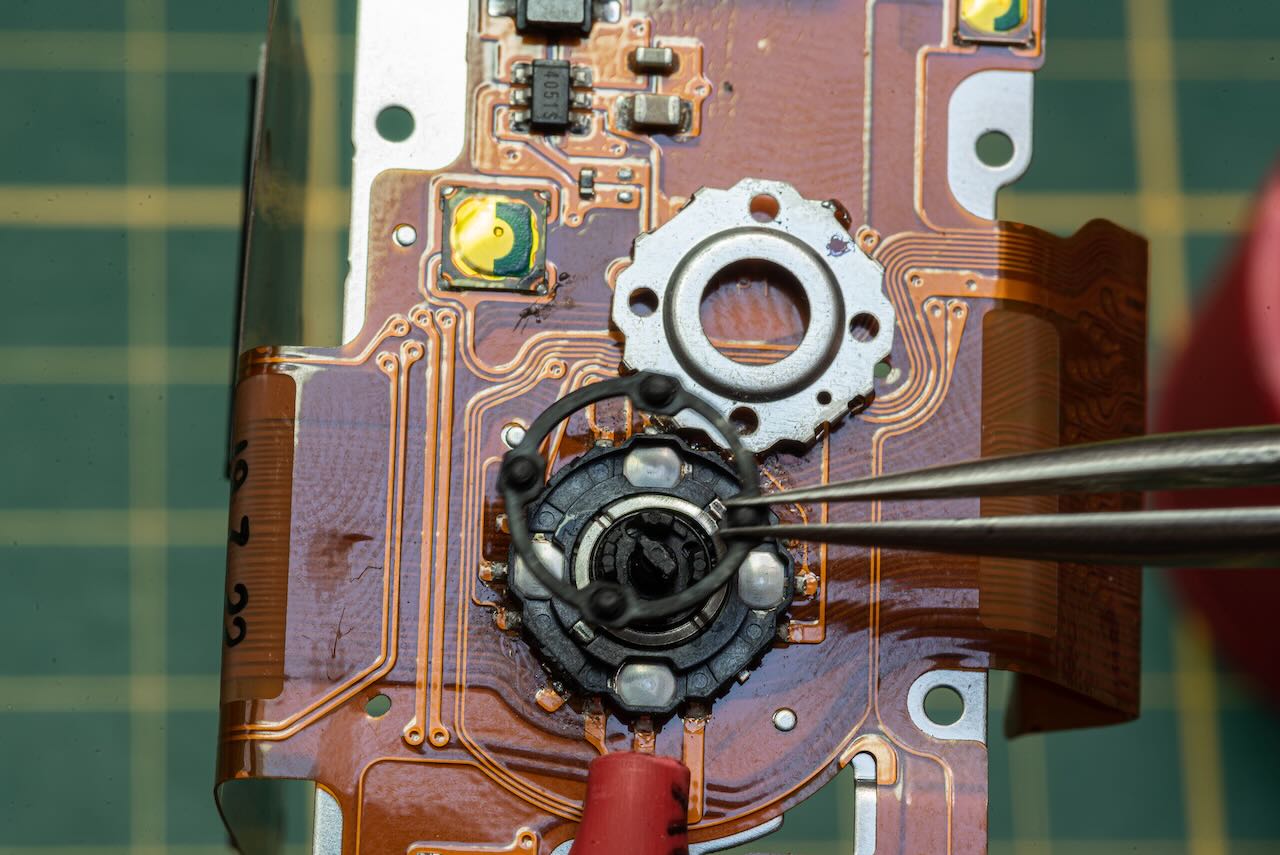

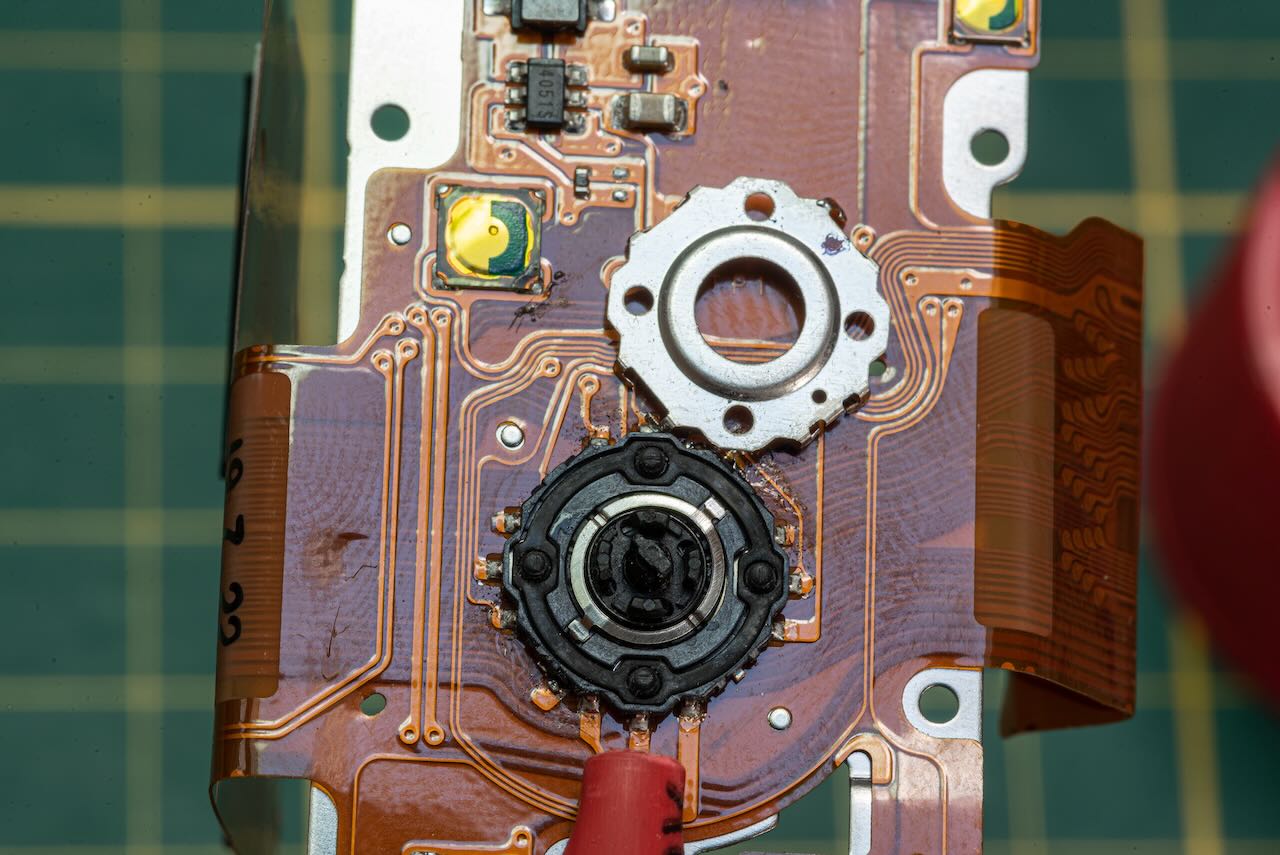

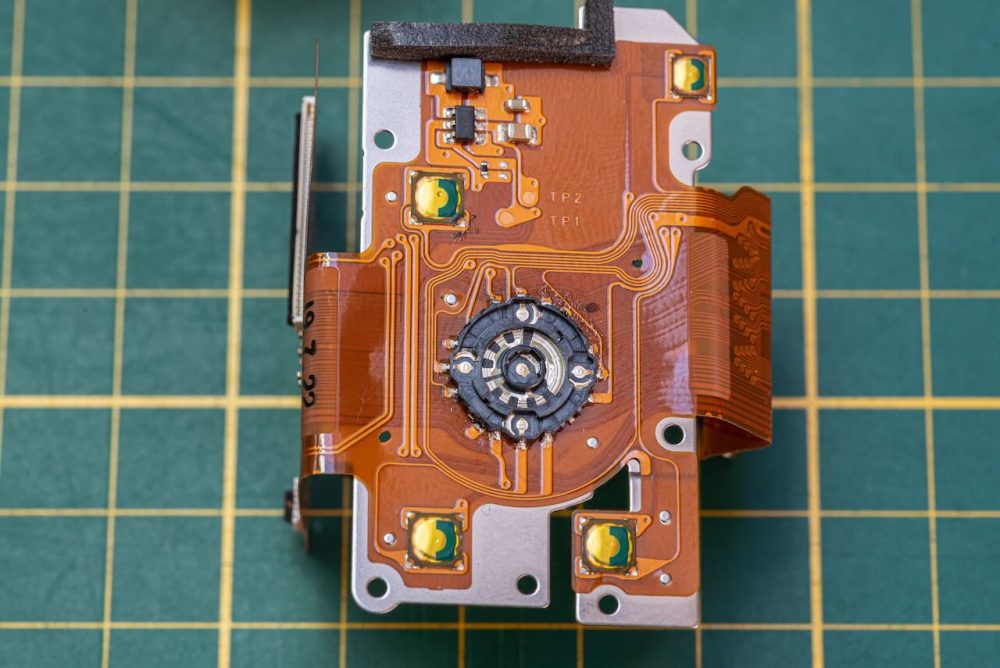

After desoldering the metal casing.

Four buttons push down to metal-springs.

Four buttons push down to metal-springs.

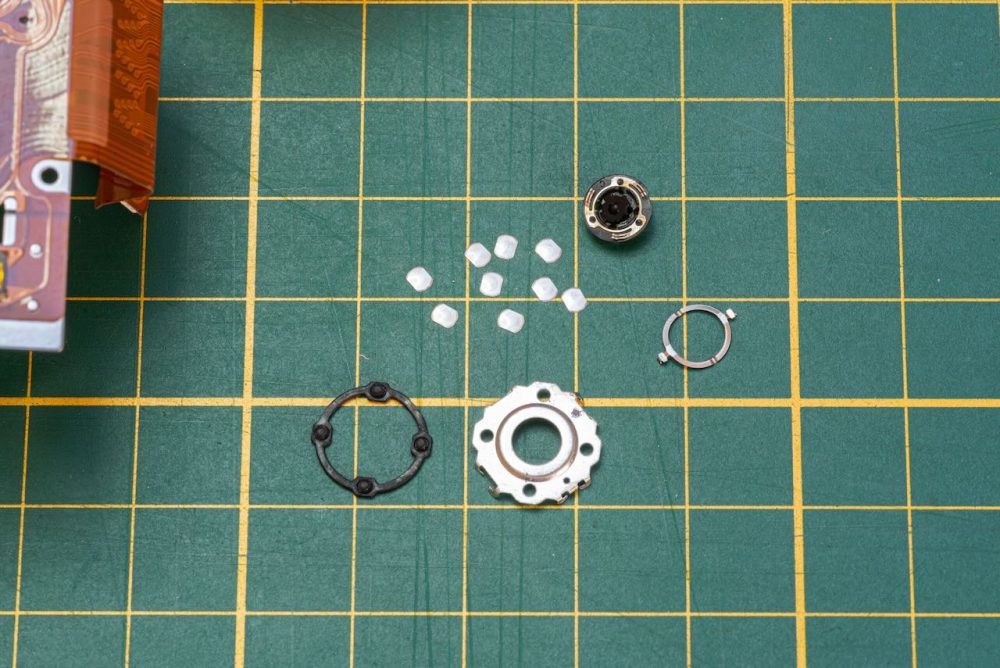

Components of the control dial.

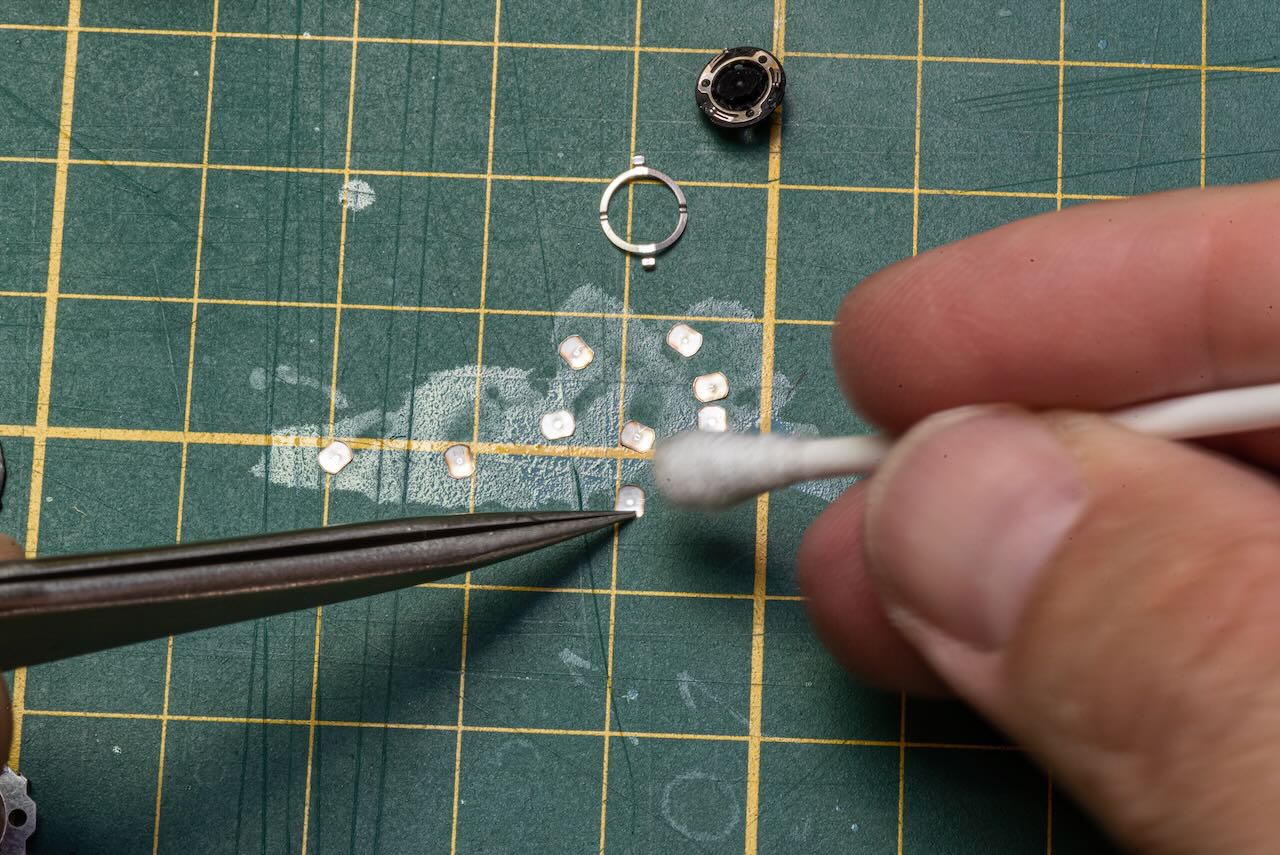

Did cleaning with contact spray and put all back together. No noteworthy positive effect. So I ordered a new sparepart.
